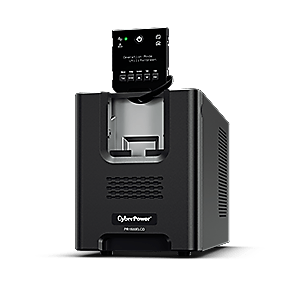

The Professional Tower Series UPS provides an advanced level of power protection to servers, telecom equipment, VOIP, internet working hardware, and other mission-critical applications. Featuring Pure Sinewave output and Automatic Voltage Regulation (AVR), which stabilizes the AC signal and maintains a safe voltage, it allows the uninterruptible power supply to maintain safe power levels for the connected equipment without resorting to battery power. Its detachable, remote-controllable Multifunction LCD Readout can be mounted on the wall or in the control center nearby to provide the highest convenience and flexibility under different management scenarios.
The optional SNMP/HTTP Remote Management Card Capability enables remote management and control of the system through a standard web browser. Together with the included PowerPanel Business Edition management software could provide corporate servers and critical workstations with comprehensive network power management, including unattended-shutdown, event logging, reporting, and notifications.
Features & Benefits:
- GreenPower UPS™ Energy Saving Technology
- Pure Sine Wave Output
- Line-Interactive UPS Topology
- Automatic Voltage Regulator (AVR)
- EMI, RFI, Surge and Lightning Spike Protection
- Critical Load Outlet
- Auto-Restart/Auto-Charge
- Emergency Power Off (EPO) Port
- Protected On/Off Switch
- Multifunction LCD Readout
- USB & Serial Connectivity Ports
- User-Replaceable Batteries
- SNMP/HTTP Remote Management Capability (Optional)
- PowerPanel Business Edition
- Equipment Protection Policy up to 100,000 AUD
| Model | PR1500ELCD |
| Capacity (VA/Watts) | 1500VA / 1350W |
| Energy- Saving Technology | Yes |
| Input | |
| Frequency Range | 47 ~ 63 Hz (auto-sensing) |
| Input Plug Type | IEC 320 C14 |
| Output | |

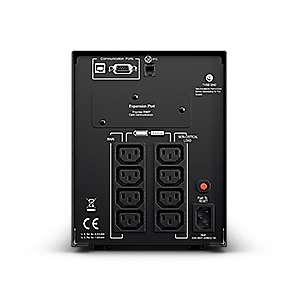

| UPS Outlets | (8) IEC |
| On Battery Output Voltage | Pure Sine Wave at 230Vac /- 5% |
| On Battery Output Frequency | 50Hz / 60 Hz /- 1% |
| Transfer Time (Typical) | 4ms |
| Overload Protection | On Utility: Internal Current Limiting & Circuit Breaker On Battery: Internal Current Limiting |
| AVR | Double Boost, Single Buck |
| Surge Protection and Filtering | |
| Surge Protection | Yes |
| Physical | |
| Maximum Dimensions(H x W x D)(mm) | 221 x 170 x 432 |
| Weight(kg) | 25.1 |
| Battery | |
| Sealed Maintenance Free Lead Acid Battery | 12V 17AH x 2 |
| User Replaceable | Yes |
| Typical Recharge Time | 8 Hours |
| Runtimes | |
| Half-Load/ Full-Load(mins) | 17/5 |
| Status Indication | |
| Indicators | Power On, Online, On Battery, Fault, Replace Battery |
| Audible Alarms | On Battery, Low Battery, Overload |
| Multi-Function LCD Display | Yes |
| Communication | |
| Power Management Software | PowerPanel Business Edition |
| Management | |
| Self-Test | Yes |
| Auto-Charge/Auto-Restart | Yes |
| COM Interface | Yes |
| USB | Yes |
| SNMP/HTTP Capable | Optional |
