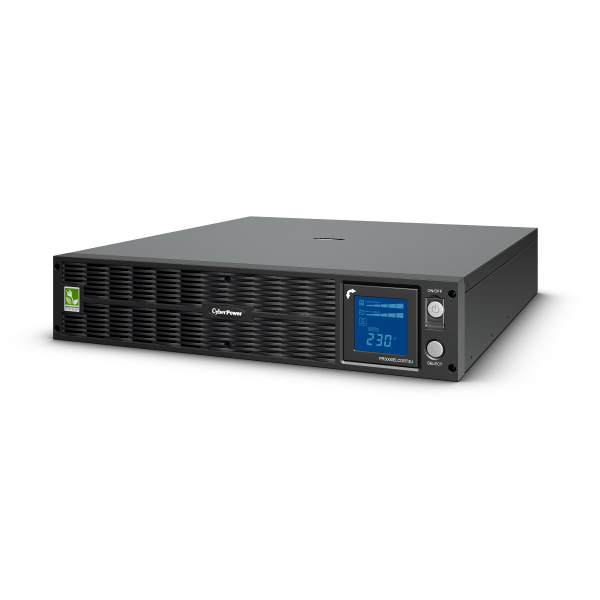

The Multifunction LCD Readout indicates critical power/battery conditions. The included PowerPanel Business Edition management software provides comprehensive network power management, including unattended shutdown, event logging, reporting, and notifications. The patented GreenPower UPS™ technology can reduce energy costs by up to 75% and dissipate 80% less heat than competitive models. Optional SNMP/HTTP Remote Management Capabilities enable remote management of the system through a standard web browser.
The unique convertible design allows configuration flexibility in either Tower (T) or Rackmount (RM) form.
Features & Benefits:
- 2RU rack space
- Green Power UPS™ Technology: Energy-Saving UPS
- 3 Years on UPS and 2 Years on Internal Batteries Advanced Replacement Warranty Australia Wide
- Save up to 75% on electricity running costs compared to competing brands
- Pure Sine Wave output
- Line-interactive technology
- Automatic Voltage Regulator (AVR)
- PowerPanel Business Edition software
- Multiple outputs for multiple servers
- Multiple communication interfaces
- Programmable brownout and overvoltage protection
- Microprocessor-based full digital control
- EMI, RFI, Surge, and spike protection
- Phone/Fax/Modem and DSL/Network protection
- Scheduled shutdown
- Auto restart/Auto charge
- User-replaceable batteries
- SNMP / HTTP Remote Management Capabilities (optional)
- RM/T configuration
- Dual Serial ports and USB connectivity
- Critical load outlets
- Metal housing
- Hot-swappable battery packs
- Multifunction LCD readout
- Audible alarms
- Resettable Circuit Breaker
- Extended-Runtime (XL) models*
- Emergency Power-Off (EPO) Port
- Protected On/Off Switch
- Equipment Protection Policy up to 50,000 AUD
Package Contents:
- UPS unit
- User manual
- PowerPanel Business Edition software CD
- Rackmount Brackets
- Phone line
- Skids
- USB A-B type cable
- Emergency Power-Off Cable (gray)
- Serial Interface Cable (DB-9)
- Power Cord x 6
*Up to 5 extended battery Packs can be added to increase battery runtimes*
| Model | PR3000ELCDRT2U |
| Capacity (VA/Watts) | 3000VA / 2250W |
| Energy – Saving Technology | Yes |
| Input | |
| Voltage Range(Adjustable) | 150Vac – 300Vac |
| Frequency Range | 50Hz / 60 Hz /- 3Hz(auto sensing) |
| Input Plug Type | IEC 320 C20 |
| Output | |
| UPS Outlets | (1) IEC 320 C19 (9) IEC 320 C13 |
| On Battery Output Voltage | Pure Sine Wave at 230Vac /- 5% |
| On Battery Output Frequency | 50Hz / 60 Hz /- 0.1Hz |
| Transfer Time (Typical) | 4ms |
| Overload Protection | Internal Circuitry Limiting/Circuit Breaker |
| AVR | Buck/ Boost/ Double Boost |
| Surge Protection and Filtering | |
| Surge Protection | Yes |
| DSL/Phone/Fax/Modem protection | RJ11/RJ45(One In/One Out) |
| Physical | |
| Maximum Dimensions(H x W x D)(mm) | 88 x 433 x 480 |
| Weight(kg) | 37 |
| Battery | |
| Sealed Maintenance Free Lead Acid Battery |
12V 9AH x 4 |
| User Replaceable | Yes |
| Typical Recharge Time | 6 Hours |
| Runtimes | |
| Half-Load/ Full-Load(mins) | 8/3 |
| Status Indication | |
| Indicators | Power On, Using Battery, AVR, Load Level, Battery Level |
| Audible Alarms | On Battery, Low Battery, Overload |
| Multi-Function LCD Readout | Yes |
| Communication | |
| Power Management Software | PowerPanel? Business Edition |
| Management | |
| Self-Test | Yes |
| Auto-Charge/Auto-Restart | Yes |
| COM Interface | Yes |
| USB Interface | Yes |
| SNMP/HTTP Capable | Yes |
