Manageability

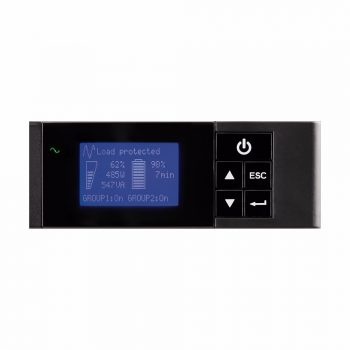

The graphical LCD display provides clear information on the UPSs status and measurements on a single screen (in seven languages). Enhanced configuration
capabilities are also available with easy-to-use navigation keys.
Meters energy consumption and provides kWh values through the LCD and Intelligent Power? Software. Load segment control enables prioritized shutdowns of nonessential equipment to maximize battery runtime for critical devices. Load segment control can
also be used to remotely reboot locked-up network equipment or to manage scheduled shutdowns and sequential start-ups.
The 5P1150iR offers Serial and USB connectivity, plus an extra slot for an optional communication card (including SNMP/Web card or relay contact card). Eaton’s
Intelligent Power ? Software Suite compatible with all major OS including virtualization software such as VMware and Hyper-V is included with each UPS.
Availability and Flexibility

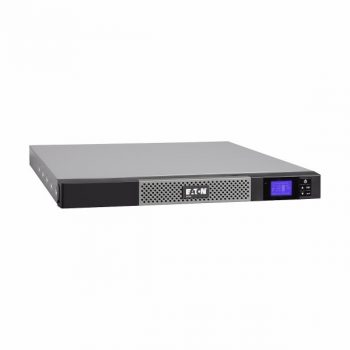

5P1150iR is a rack form factor to cater for varied deployment applications. Stronger, longer battery life: Eaton ABM? battery management technology uses an innovative three-stage charging technique that only recharges the battery when necessary, so the battery experiences less corrosion and service life is prolonged by up to 50%.

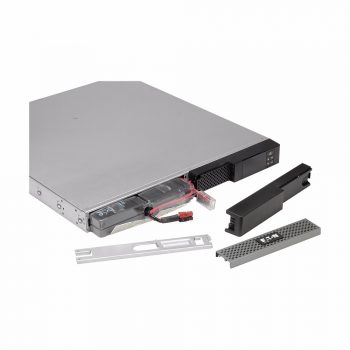

Batteries can be hot-swapped without ever having to shut down connected equipment. With an optional, hot-swap maintenance bypass module, you can even replace the entire UPS.
Technical Specifications
Rating (VA/W): 1150VA / 770W
Electrical characteristics
Technology: Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
Input voltage and frequency without using batteries: 160V-294V (adjustable to 150V-294V) 47 to 70 Hz (50 Hz system), 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
Output voltage and frequency: 230 V (+6/-10 %) (Adjustable to 200V / 208V / 220V / 230V / 240V), 50/60 Hz +/- 0.1 % (autosensing)

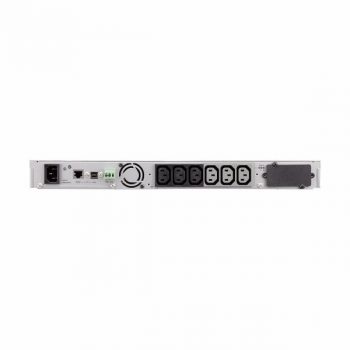

Connections
Input: IEC C14 (10A) socket
Outputs: 6 x IEC C13 (10A)
Remotely controlled sockets:m2 x IEC C13 (10A) individually switched
Batteries Typical backup times for 50 and 70% load*
5P1150iR: 12/7.5 mins
Battery management: ABM & Temperature-compensated charging method (user selectable), Automatic battery test, deep discharge protection, to automatic recognition of external battery units.
Interfaces
Communication Ports: 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously) + 1 mini terminal block for remote ON/OFF or Remote Power Off
Communications card slots: 1 slot for NETWORK-MS, MODBUS-MS or RELAY-MS cards
Operating conditions, standards and approvals
Operating temperature: 0?C to +35?C,
Noise Level: < 40dBA
Performance – Safety – EMC: IEC/EN 62040-1-1 (Safety), IEC/EN 62040-2 (EMC), IEC/EN 62040-3 (Performance), C-Tick
Approvals: CE, CB Report(TUV), C-Tick
Dimensions W x D x H / Weight
UPS Dimensions (mm) & weight: 438 x 509 x 43.2mm(1RU) / 14.6kg
Customer Service & Support
Warranty: 3 years
* Runtimes are shown at 0.7 power factor. Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.
