Availability and Flexibility

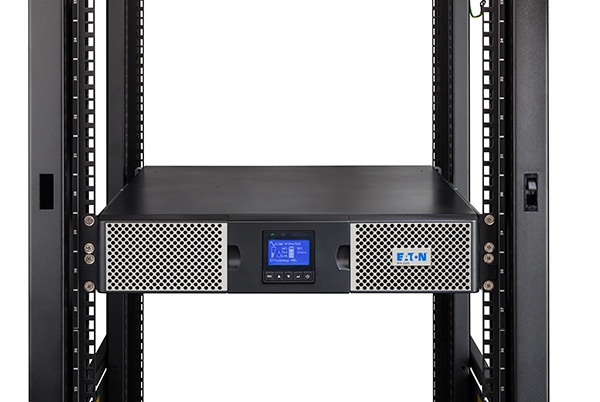

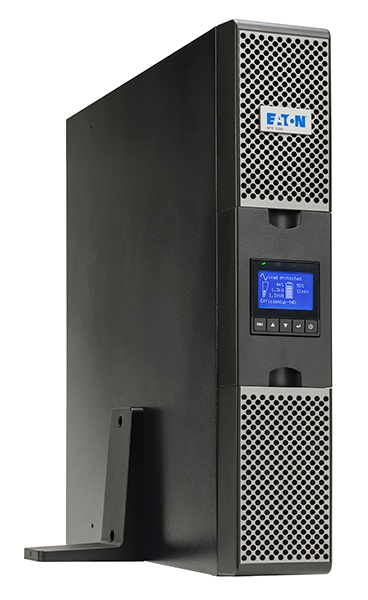

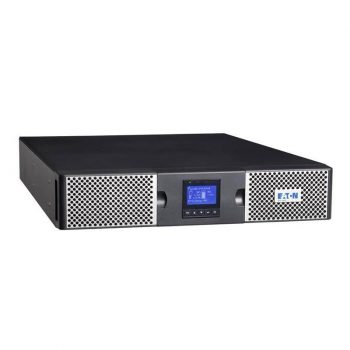

- 9PX 2000 is available in RT2U format (optimised for rack mounting), pedestal and rail kits are included with all models.
- The internal bypass allows service continuity in case of an internal fault, for easy replacement of the UPS.
- Stronger, longer battery life: Eaton ABM? battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%.
- More runtime can be added with up to 4 external hot-swappable battery modules, able to run systems for hours if necessary.
Manageability
- The graphical LCD provides clear information on the UPS’s status and measurements on a single screen. Enhanced configuration capabilities are also available.
- 9PX can meter energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton Intelligent Power Software.
- Load segment control enables prioritised shutdown of non-essential equipment to maximise battery runtime for critical devices.
- 9PX offers Serial and USB connectivity, plus an extra slot for an optional communication card. Eaton’s Intelligent Power Software seamlessly integrates with leading virtualisation environments and cloud orchestration tools.
Technical Specifications
- Rating (VA/W) 2000VA/1800W
Electrical Characteristics
- Technology: Online double conversion with Power Factor Correction (PFC) system
- Nominal voltage: 200/208/220/230/240V
- Input voltage range: 176-276V without derating (up to 100-276V with derating)
- Input frequency range: 40-70Hz, 50/60Hz auto-selection, frequency converter mode
- Efficiency: up to 93% in online mode (up to 98% in Hi-efficiency mode)
Connections
- Input: (1) IEC C14 (10A)
- Outputs: (4) IEC 13 ( 10A) + (2) AUS GPO (10A)
- Switched Outlet Group: 2 outlet groups
- Switched Outlet: (2) IEC C13 (10A) + (2) AUS GPO (10A)
Batteries
- Typical backup times (minutes)*: 540W / 900W / 1800W
- 9PX 2000: 23 / 12 / 4
- 9PX 2000 + 1 EBM: 114 / 65 / 29
- 9PX 2000 + 4 EBM: 453 / 261 / 118
- Battery management: ABM? & Temperature-compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
Communication
- Communication ports: 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay
- Communication slot: 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
Operating conditions, standards and approvals
- Operating temperature: 0 to 40 °C
- Typical Noise: level 40dB
- Safety: IEC/EN 62040-1, UL 1778, CSA 22.2
- EMC: IEC/EN 62040 -2, FCC Class B, CISPR22 Class B
- Approvals & Markings: CE /CB report (TUV) / cULus / EAC / RCM / KC / Energy Star
Dimensions H x W x D in mm/Weight
- UPS 2U version: 86,5*440*605/27.4kg
EBM 2U version: 86,5*440*605/39.2kg
Customer Service and Support
- Warranty: 3 years
* Backup times are approximate and may vary with equipment, configuration, battery age, temperature etc.
