Availability and Flexibility

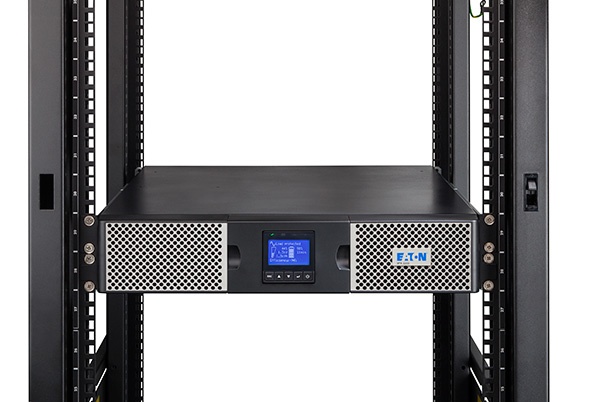

- 9PX 3000 are available in RT3U (for tower or short-depth racks), pedestal and rail kits are included.
- The internal bypass allows service continuity in case of an internal fault, a maintenance bypass is also available (as standard on HotSwap version) for easy
replacement of the UPS. - Stronger, longer battery life: Eaton ABM? battery management technology uses an innovative three-stage charging technique that extends battery life by
up to 50%. - More runtime can be added with up to 4 external hot-swappable battery modules, able to run systems for hours if necessary.
Manageability
- The graphical LCD provides clear information on the UPS’s status and measurements on a single screen. Enhanced configuration capabilities are
also available. - 9PX can meter energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton’s Intelligent PowerTM Software.
- Load segment control enables prioritised shutdowns of non-essential equipment to maximise battery runtime for critical devices.
- 9PX offers Serial and USB connectivity, plus an extra slot for an optional communication card. Eaton’s Intelligent Power
- Software seamlessly integrates with leading virtualisation environments and cloud orchestration tools.
Technical Specifications
- Rating (VA/W): 3000VA/3000W
Electrical characteristics
- Technology: Online double conversion with Power Factor Correction (PFC) system
- Nominal voltage: 200 / 208 / 220 / 230 / 240V
- Input voltage range: 176-276V without derating (up to 100-276V with derating)
- Input frequency range: 40-70Hz, 50/60Hz autoselection, frequency converter mode
- Efficiency: up to 94% in online mode (up to 98% in Hi-efficiency mode)
Connections
- Input: 1 IEC C20 (16A) or terminal block on HotSwap MBP HW (Hard-Wired)
- Outputs: 8 IEC C13 (10A) sockets + 2 IEC C19 (16A) sockets
- Outputs on HotSwap models: 4 FR/Schuko sockets or 3 BS sockets or 6 IEC 10A sockets or terminal blocks (HW version)
Communication
- Communication ports: 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay
- Communication slot: 1 slot for Network-MS card (included in netpack versions), ModBus-MS or Relay-MS cards
Operating conditions, standards and approvals
- Operating temperature: 0 to 40 °C
- Typical noise level: 35d,B 40dB
- Safety: IEC/EN 62040-1, UL 1778, CSA 22.2 EMC IEC/EN 62040 -2, FCC Class B, CISPR22 Class B
- Approvals & markings: CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
Dimensions H x W x D in mm/ Weight
- UPS: 3U version: 130*440*485/27.4kg
- EBM: 3U version: 130*440*485/38.2kg
Customer service and support
- Warranty: 3 years on electronics
Batteries
- Typical backup times*: 300W / 500W / 800W / 1200W / 1800W / 2500W
- 9PX 3000: 60 / 36 / 22 / 13 / 7 / 4
- 9PX 3000 + 1 EBM/+4 EBM: 221/824 135/504 83/307 52/194 33/122 22/82
- Battery management ABM? & temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units
