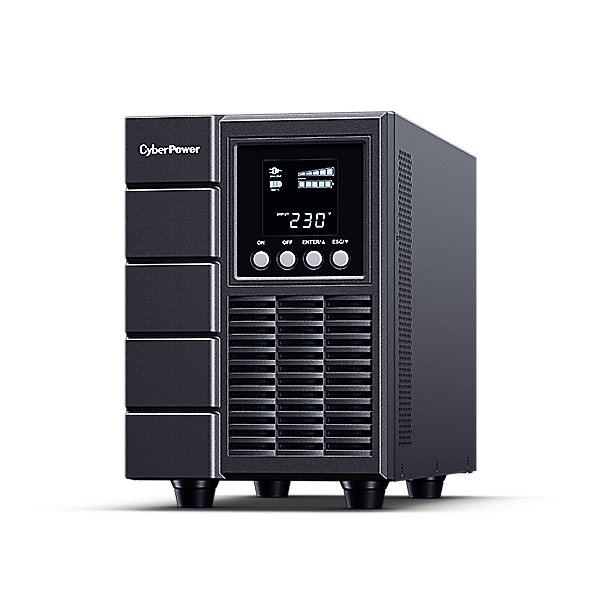

CyberPower Systems Online Series 1000VA Double Conversion Tower UPS with LCD

$514.55 Inc GST

The Online OLS1000E UPS with LCD readout and pure sine wave output safeguards mission-critical servers, telecom equipment, VoIP and internetworking hardware that requires seamless connection and advanced power protection. Its Double-Conversion topology is generator compatible and delivers consistent and having zero transfer time during power outages, protecting connected equipment and preventing costly business interruptions. The LCD control panel provides various different settings for status and operation. Functions include menus for checking power status on different parameters, settings for setup, control and testing and selections for event logging.

The OLS1000E features remote network management capabilities which include the PowerPanel® Business Edition software, an optional SNMP/ HTTP remote management card, and an optional ENVIROSENSOR. These management tools enable administrators to perform various operations including remote management, real-time monitoring, UPS configuration, and scheduled server/workstations shutdowns. All Smart App UPS systems and Remote Management Card have achieved the status of Cisco EnergyWise certified, better supporting other EnergyWise-enabled entities and be easily monitored and controlled to achieve the best energy performance under the EnergyWise operation framework.


UPS Topology Double-Conversion
Energy Saving ECO Mode Efficiency > 95%
Active PFC Compatible Yes


Voltage 230Vac
Input Voltage Range 160Vac - 300Vac
Adjustable Voltage Range 110Vac - 300Vac
Input Frequency Range 40Hz - 70Hz
Rated Input current 10A
Input Power Factor ?0.98
Cold Start Yes
Backfeed Protection Yes
Plug Type IEC C14
Plug Style right
Input Current (Amp) 10A
Cord Length (ft.) 6
Cord Length (m) 1.8


VA 1000
Watts 900
On Battery Waveform Sine Wave
On Battery Voltage 208, 220, 230, 240Vac (Configurable)
Automatic Voltage Regulation (Line Mode) ± 1%
On Battery Frequency 50/60Hz ± 0.5% (Auto-Sensing or Configurable)
Overload Protection AC Mode: Warning only @ 110%>Load>105%, Transfer to bypass after 60sec @ 120%>Load>110%, Transfer to bypass immediately@ Load>120ºttery Mode: Warning only @ 110%>Load>105%, Shutdown after 10sec @ 120%>Load>110%, Shutdown immediately @ Load>120%
Outlets - Total 4
Outlet Type IEC320 C13
Outlets - Battery & Surge Protected 4
Outlets - Critical Load 4
Rated Power Factor 0.9
Crest Factor 3:1
Harmonic Distortion THD < 3% at Linear Load, < 5% at Non-linear Load
ECO Mode Voltage Regulation ± 10%, ± 15% ,± 20% (Configurable)
Bypass Internal Bypass (Automatic and Manual)
Transfer Time 0ms


Runtime at Half Load (min) 16
Runtime at Full Load (min) 6
Battery Type Sealed Lead-Acid
Battery Number 1228WS
Battery Size 12V/7AH
Battery Quantity 3
Typical Recharge Time 5 Hours
Smart Battery Management (SBM) Mode Yes
Extended Battery Module BPSE36V45A

Surge Protection & Filtering

Surge Suppression 440 Joules
Phone Protection RJ11 Yes
Phone / Network Protection RJ11/RJ45 1-In, 1-Out
EMI/RFI Filtration Yes

Management & Communications

LCD Control Panel Yes
Multifunction LCD Diagnostic Display 22 different status options via the UPS Information menu and Event Log menu
HID Compliant USB Port Yes
Serial Port Yes
Emergency Power Off (EPO) Port Yes
Management Cable USB Cable, Serial Cable, Phone Cable
Audible Alarms Yes
Software PowerPanel® Business Edition
SNMP / HTTP Remote Monitoring Yes, with optional RMCARD205 SNMP Card


Form Factor Tower
Enclosure Construction Steel

Physical - UPS Module

Dimensions (WxHxD) (in.) 5.94 x 8.7 x 15.51
Dimensions (WxHxD) (mm.) 151 x 225 x 394
Weight (kg.) 13.1

Physical - Battery Module

Dimensions (WxHxD) (in.) 5.94 x 8.7 x 15.51
Dimensions (WxHxD) (mm.) 151 x 225 x 394
Weight (kg.) 17.2


Operating Temperature 32 °F to 104 °F / 0 °C to 40 °C
Operating Humidity 20% ~ 90% non-condensing
Operating Elevation 0-5000 feet (0-1500 meters)
Storage Temperature -4 °F to 122 °F / -20 °C to 50 °C
Storage Relative Humidity 10% to 90%
Storage Elevation 0-5000 feet (0-1500 meters)
Online Thermal Dissipation 342 BTU/hr
Audible noise at 1.5M from surface of unit 45dBA


Certifications CE, Gost-R
RoHS RoHS Compliant


Product Warranty 2 Years Advanced Replacement
Connected Equipment Guarantee Lifetime
CEG Amount 100000 AUD
