Features
- 5000VA/3750 watt max. output power capacity compatible with the International 230V input voltage
- 3U rack/tower UPS installs in standard 19-inch rack enclosures with an installed depth of only 635mm / 25in
- Protects sensitive networking equipment from blackouts, voltage fluctuations, and transient surges
- Line Interactive Automatic Voltage Regulation (AVR) corrects 230V nominal input from 170 to 282VAC to usable 230V levels without consuming battery power
- AVR circuits boost under voltages from 170 to 199V by 12% and reduce over voltages from 245 to 282V by 12%
- Network interfaces support simultaneous communications via USB, DB9 serial, or contact closure, and a slot for network management card options
- Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX, and SNMPWEBCARD
- USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite’s PowerAlert software, available via FREE download from www.tripplite.com/poweralert
- Built-in Emergency Power Off (EPO) interface with cable
- Sine wave output in AC and battery mode
- Expandable runtime with optional BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible), and BP48V27-2US (multi-pack compatible) external battery packs
- Half/full load runtime of 20/8.5 minutes with internal batteries
- Intelligent battery management system extends battery life

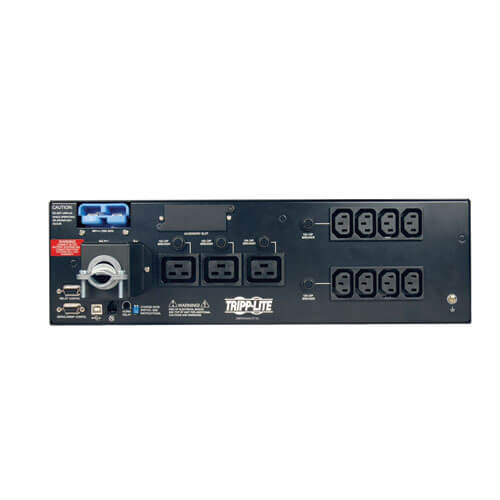

- Includes 11 output receptacles (3 C19/8 C13)
- Hardwire the input AC connection

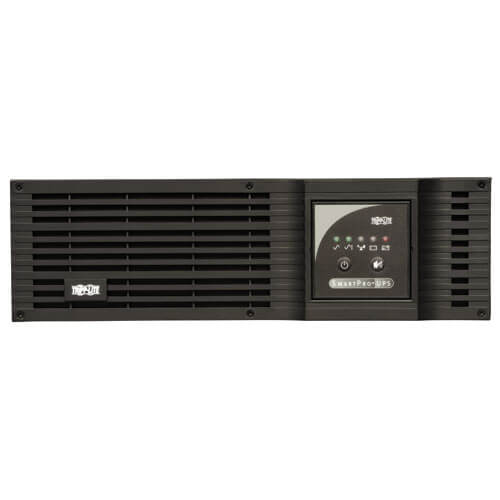

- 3-stage metered LEDs offer current monitoring and battery charge level
- Mains power and voltage regulation LEDs offer at-a-glance power status information
- Front panel switches support self-test and alarm cancel functions
- Included adjustable mounting rails support installation in 4-post 19-inch racks
- Supports upright tower placement with optional 2-9USTAND accessory
- CE, GOST, SASO listed
PHYSICAL
| Cooling Method | Fans |
| Installation Form Factors Supported with Included Accessories | 4-post 19-inch rackmount |
| Installation Form Factors Supported with Optional Accessories | 2 post rackmount (2POSTRMKITHD); Tower (2-9USTAND) |
| Minimum Required Rack Depth with External Battery Pack (cm) | 81 |
| Minimum Required Rack Depth with External Battery Pack (in.) | 32 |
| Minimum Required Rack Depth without External Battery Pack (cm) | 72 |
| Minimum Required Rack Depth without External Battery Pack (in.) | 28.5 |
| Primary Form Factor | Rackmount |
| Primary UPS Depth (mm) | 635 |
| Primary UPS Height (mm) | 132 |
| Primary UPS Width (mm) | 445 |
| Rack Height | 3U |
| Shipping Dimensions (hwd / cm) | 28.58 x 57.20 x 80.01 |
| Shipping Weight (kg) | 82.55 |
| UPS Housing Material | Steel |
| UPS Power Module Dimensions (hwd, cm) | 13.21 x 44.45 x 63.50 |
| UPS Power Module Weight (kg) | 64.86 |

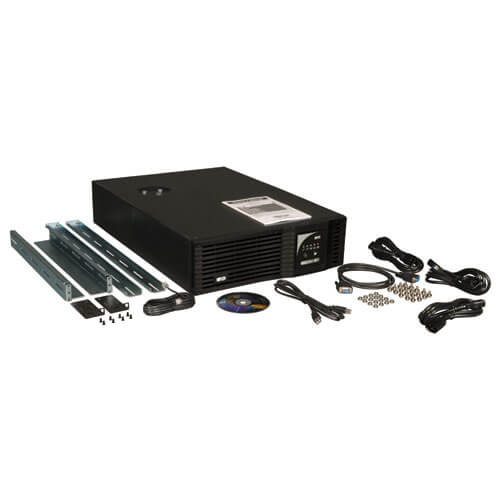

Package Includes
- SMX5000XLRT3U UPS system
- USB, DB9 and EPO Cabling
- Mounting hardware for 4-post rackmount installation
- Warranty information
- Instruction manual
