Rack-mount UPS offers complete power protection for small network applications, including wiring closets, security and digital signage.
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown
- Maintains continuous 230V nominal output during brownouts and overvoltages
- Easy-to-read LCD allows real-time monitoring of voltage, battery status and other data
- High 96% efficiency with low BTU ratings saves electricity and lowers your energy costs
View Full Product Details
OVERVIEW
| UPC Code |
037332126078 |
| UPS Type |
Line-Interactive |
INPUT
| Rated input current (Maximum Load) |
4.4A |
| Nominal Input Voltage(s) Supported |
230V AC |
| UPS Input Connection Type |
C14 inlet |
| UPS Input Connection Description |
Chassis mounted C14 inlet accepts user-supplied AC power cord with country specific cordsets |
| Input Circuit Breakers |
5A |
| Input Phase |
Single-Phase |
| Input Frequency |
?3Hz |
OUTPUT
| Output Volt Amp Capacity (VA) |
1500 |
| Output kVA Capacity (kVA) |
1.5 |
| Output Watt Capacity (Watts) |
900 |
| Nominal Voltage Details |
230V nominal output in battery mode |
| Frequency Compatibility |
50 / 60 Hz |
| Frequency Compatibility Details |
Automatic frequency selection |
| Output Voltage Regulation (Line Mode) |
-18%, +8% |
| Output Voltage Regulation (Battery Mode) |
+/- 5% |
| Included Output Power Cables |
Includes 2 C13 to C14 output power cables. |
| Hot-Swap PDU options |
PDUBHV10 (2U / 8 C13 outlets) |
| Output AC Waveform (AC Mode) |
Sine wave |
| Output AC Waveform (Battery Mode) |
PWM sine wave |
| Nominal Output Voltage(s) Supported |
220V; 230V; 240V |

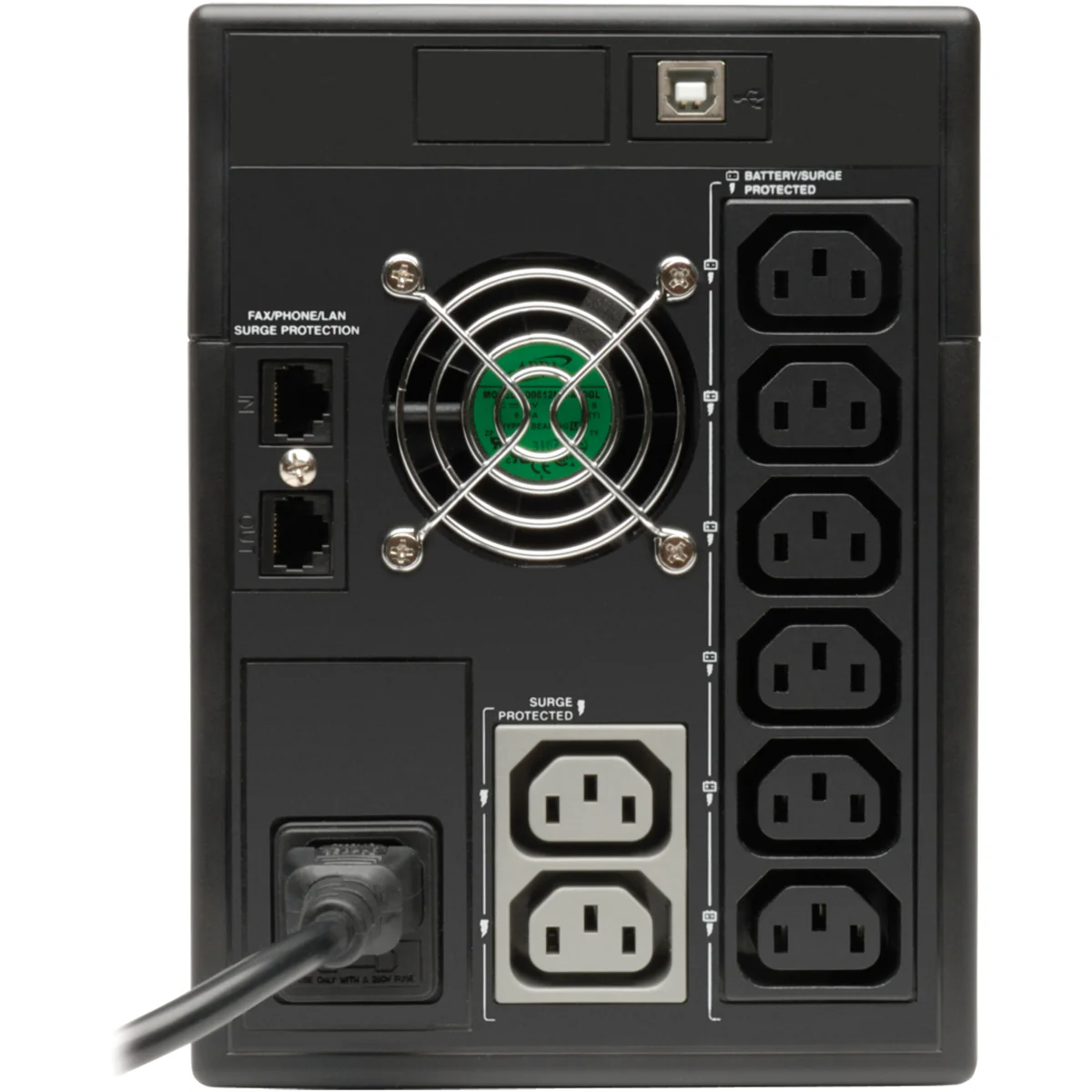

| Output Receptacles |
(8) C13 |
| Individually Controllable Load Banks |
No |
BATTERY
| Battery Type |
Valve Regulated Lead Acid (VRLA) |
| Full Load Runtime (min.) |
4.5 min. (900w) |
| Half Load Runtime (min.) |
12 min. (450w) |
| Expandable Runtime |
No |
| DC System Voltage (VDC) |
24 |
| Battery Recharge Rate (Included Batteries) |
4.5 hours from 10% to 90% |
| Battery Access |
Includes battery access door |
| Internal UPS Replacement Battery Cartridge |
IMPORTANT BATTERY REPLACEMENT INFORMATION > If your SMX1500LCD UPS has no battery replacement door, please contact a local electronics repair technician to source and install a matching replacement battery; If your SMX1500LCD UPS is equipped with a battery access door, please order Tripp Lite ?RBC1500? (quantity 1) replacement battery |
| Battery Replacement Description |
Hot-swappable, user-replaceable internal battery cartridge |
VOLTAGE REGULATION
| Voltage Regulation Description |
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 144 to 282 |
| Overvoltage Correction |
Input voltages between 245 and 282 are reduced by 12% |
| Undervoltage Correction |
Input voltages between 177 and 199 are boosted by 14% |
| Severe Undervoltage Correction |
Input voltages between 144 and 176 are boosted by 30% |
USER INTERFACE, ALERTS & CONTROLS
| Front Panel LCD Display |
Backlighted LCD screen offers detailed UPS status information, configuration options and Error message reporting; STATUS INFORMATION includes Input Voltage, Output Voltage, Estimated Runtime (minutes), Output Load Percentage, Output Load Wattage, Battery Charge Percentage, Graphical 5-Bar Battery Charge Level and UPS Operating Mode Display; CONFIGURATION OPTIONS include Power Sensitivity, LCD Status Information Scrolling, Alarm Disable, LCD Brightness and Self Test / REPORTED ERROR MESSAGES include Replace-Battery and Overload conditions; LCD Screen rotates for vertical or horizontal UPS placement |
| Switches |
ON/OFF/MODE button provides UPS on/off power control (long-press) and advances the LCD screen display (short tap); MUTE/ENTER button provides temporary alarm cancel, plus selection and confirmation of on-screen configuration options |
| Alarm Cancel Operation |
Press the MUTE/ENTER button during a power failure to silence the alarm; Once silenced, alarm will re-sound to indicate low-battery status |
| Audible Alarm |
Audible alarm indicates power-failure and low-battery status; Alarm can be disabled entirely via front panel LCD interface (see manual) |
| LED Indicators |
Front panel LCD display |
SURGE / NOISE SUPPRESSION
| UPS AC Suppression Joule Rating |
360 |
| UPS AC Suppression Response Time |
Instantaneous |
| UPS Dataline Suppression |
1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet |
| UPS Dataline Suppression Details |
RJ11 telephone cable included |
| EMI / RFI AC Noise Suppression |
Yes |
PHYSICAL
| Cooling Method |
Convection |
| Included Mounting Accessory Description |
Included mounting brackets enable installation in 2 and 4 post racks, plus upright tower configurations; Set of 4 rubber-feet enable no-slip horizontal desktop placement |
| Installation Form Factors Supported with Included Accessories |
2 post 19 inch rackmount; 2 post front mount; 4 post 19 inch rackmount; Tower |
| Minimum Required Rack Depth (cm) |
34.29 |
| Primary Form Factor |
Rackmount |
| Primary UPS Depth (mm) |
267 |
| Primary UPS Height (mm) |
89 |
| Primary UPS Width (mm) |
438 |
| Rack Height |
2U |
| Shipping Dimensions (hwd / cm) |
19.81 x 38.81 x 55.30 |
| Shipping Weight (kg) |
15.67 |
| UPS Housing Material |
ABS |
| UPS Power Module Dimensions (hwd, cm) |
8.89 x 43.82 x 26.67 |
| UPS Power Module Weight (kg) |
13.34 |
ENVIRONMENTAL
| Operating Temperature Range |
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Storage Temperature Range |
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Relative Humidity |
0 to 95%, non-condensing |
| AC Mode BTU / Hr. (Full Load) |
133 |
| Battery Mode BTU / Hr. (Full Load) |
542 |
| AC Mode Efficiency Rating (100% Load) |
96% |
COMMUNICATIONS
| Network Monitoring Port Description |
Supports detailed monitoring of UPS and site power conditions |
| PowerAlert Software |
For local monitoring via the UPS?s built-in communication ports, download PowerAlert Local software at https://www.tripplite.com/poweralert |
| Communications Cable |
USB cabling included |
| WatchDog Compatibility |
Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| Communications Interface |
DB9 Serial; USB (HID enabled) |
LINE / BATTERY TRANSFER
| Transfer Time |
3 milliseconds (AC to battery mode) / 2 milliseconds (battery to AC mode) |
| Low Voltage Transfer to Battery Power (Setpoint) |
144 |
| High Voltage Transfer to Battery Power (Setpoint) |
282 |
SPECIAL FEATURES
| Cold Start (Startup in Battery Mode During a Power Failure) |
Cold-start operation supported |
| High Availability UPS Features |
Automatic Voltage Regulation (AVR); Hot swappable batteries; Surge/noise protection |
| Green Energy-Saving Features |
Greater than 95% efficiency – GREEN UPS |
STANDARDS & COMPLIANCE
| UPS Certifications |
CE; Tested to GOST (Russia); Tested to SASO (Saudi Arabia) |
| Certification Details |
CE Class A (EMI); CE IEC 62040-1-1, 62040-1-2 |
WARRANTY
| Product Warranty Period (International) |
2-year limited warranty |
