Technical Specification
MODEL UPT-IOTRT2000LCD
- VA/Watt – 2000VA/2000W*
INPUT PERFORMANCE
- Voltage range – 230-300V 100% load, 110-230V derating to 40% load linearly
- Nominal Frequency – 50Hz/60Hz
- Frequency Range – 40Hz-70Hz (45Hz-55Hz, 54Hz-66Hz @ load>60%)
- PF – >0.99
- THDI – <5%
INPUT CONNECTION – 1x IEC C14
OUTPUT PERFORMANCE
- Nominal Voltage – 230/230/240 VAC (Nominal voltage 220VAC power derating to 90% of rating power)
- Normal Frequency – 50Hz/60Hz
- Maximum PF – PF =1
- Voltage Accuracy – ±1%
- THDv – <1% linear load; <5% nonlinear load
- Transfer time – 0ms@line <-> battery; 4ms @ line <-> bypass; 10ms @ ECO <-> Inverter
- Crest Ratio – Max 3:1
- Overload – 100%<load≤102% continuous, 102%<load≤125% for minutes

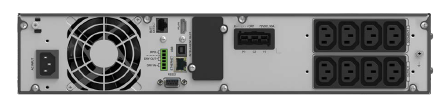

- Socket – 1 main outlet group (with 4 x IEC C13)
1 programmable outlet group (with 4 x IEC C13) - Load Segment Control – 1 programmable load segment control
BATTERY
- Capacity (AH) – 6 x 12V (7Ah)
MAXIMUM EBM QUANTITY – 4
EBM AUTO DETECTION – YES
OTHER MODE
- CVCF – Yes (derating to 60% load)
HMI
- Display – Dot matrix LCD (option segment LCD)
COMMUNICATION
- Port – USB, RS232, Dry in/out, RPO, IOT Ethernet port
- Monitor Software – Winpower, Winpower View APP
DIMENSION (W*D*H) mm – 438*600*85.5(2U)
ENVIRONMENT
- Operating Temperature – 0-40⁰C
