Technical Specification

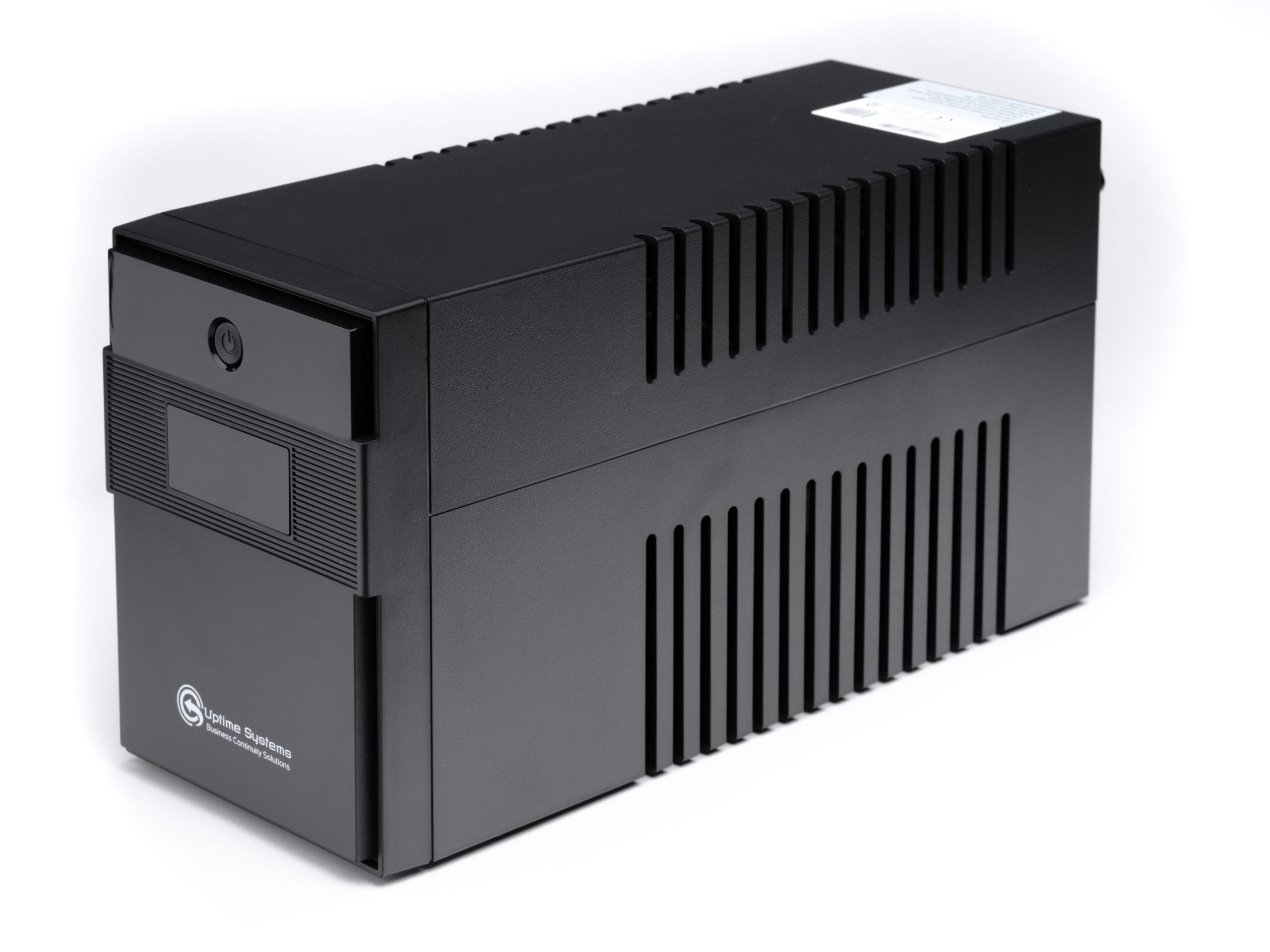

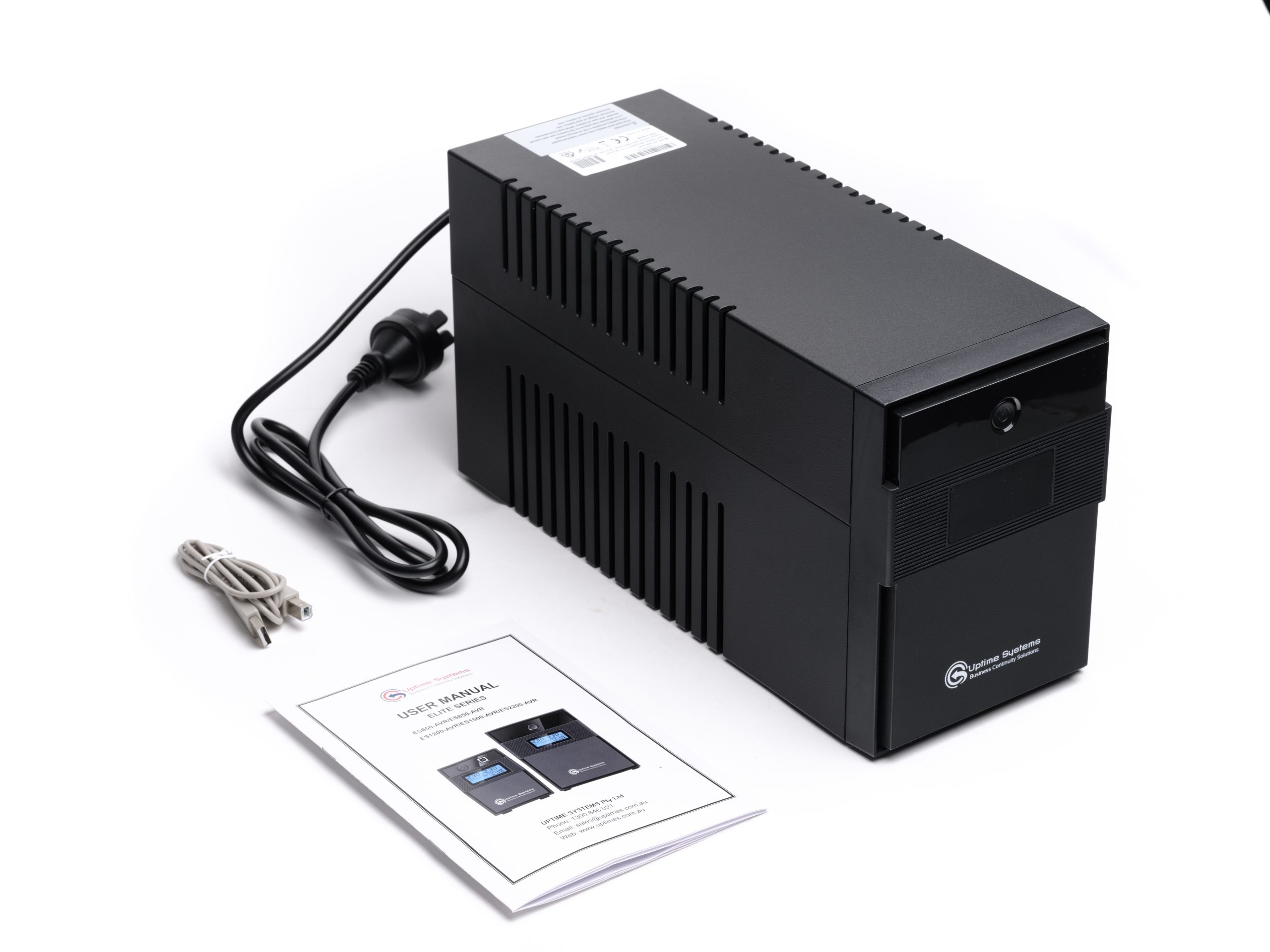

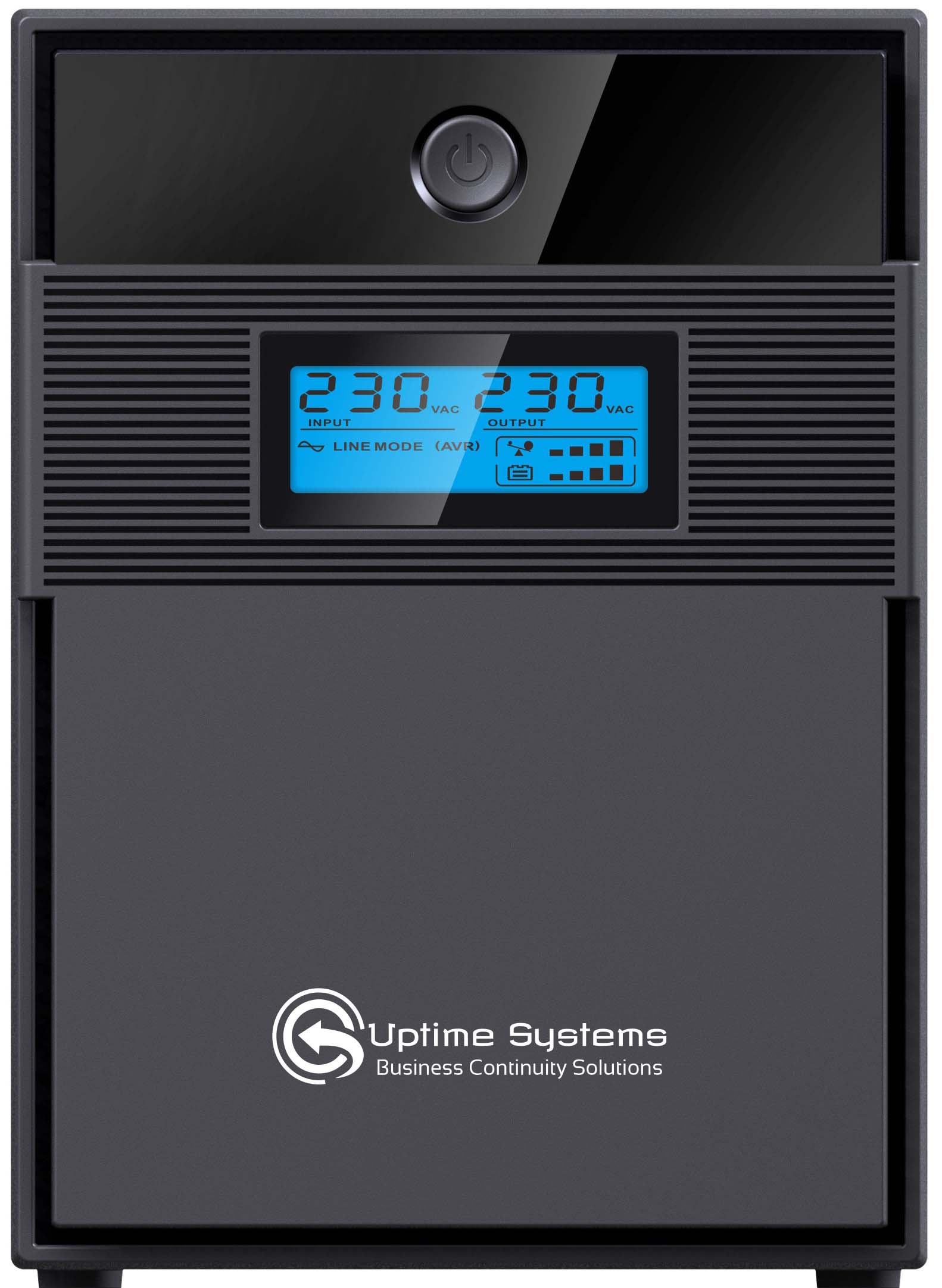

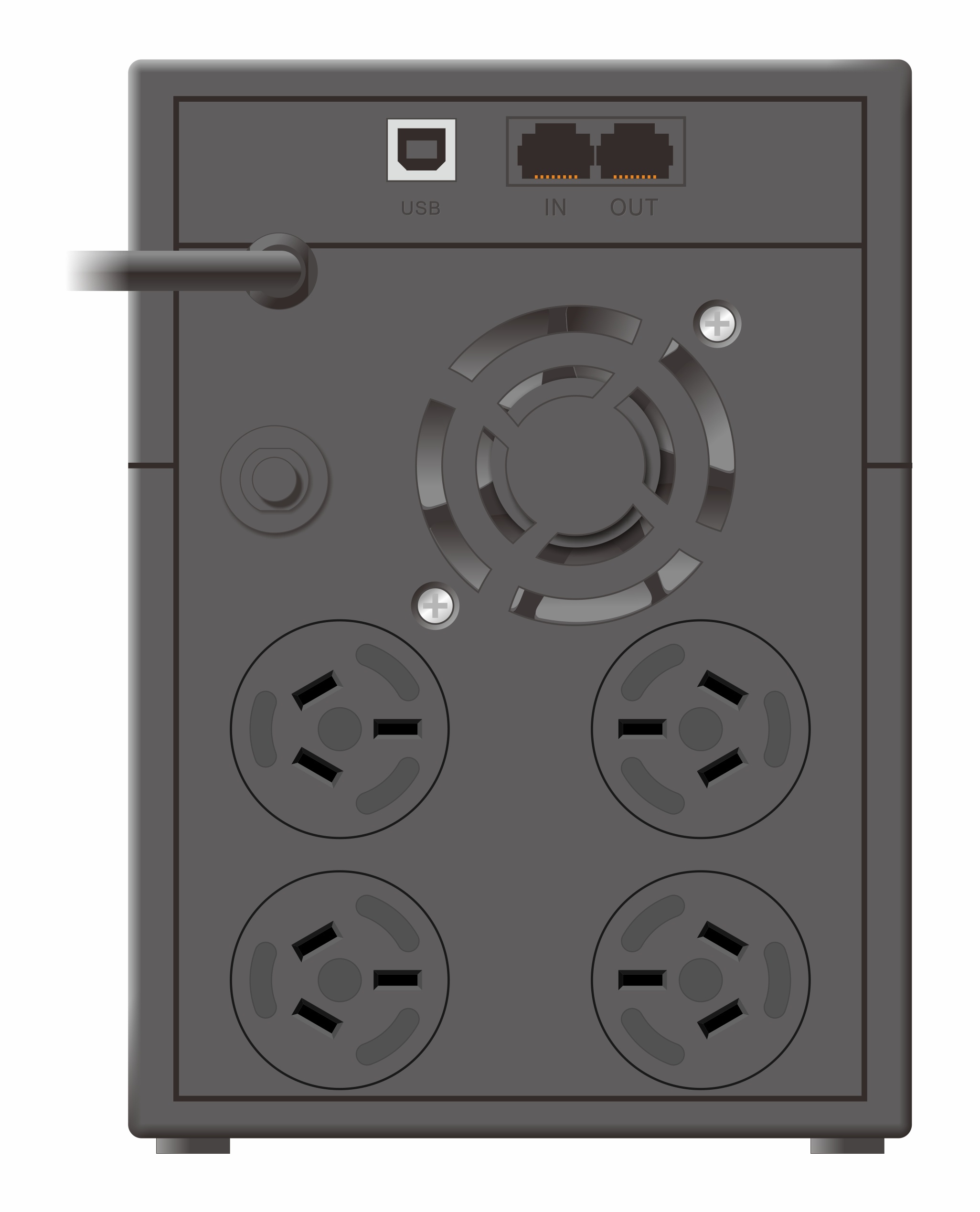

MODEL ES2200-AVR
- CAPACITY – 2200VA/1200W
INPUT
- Voltage – 230 VAC
- Voltage Range – 170~280VAC
OUTPUT
- Nominal Voltage – 230Vac
- Voltage Regulation – +/-10% (Battery mode)
- Frequency Range – 50/60Hz
- Frequency Regulation – ±1Hz (Battery mode)
- Transfer Time – Typical 4-8ms
- Waveform – Stepped Sine Wave
BATTERY
- Type (Lead-acid) – 12V/9Ah*2
PHYSICAL
- Dimension (D*W*H) – 364mm*139mm*195 mm
- Net weight – 10.4kg
ENVIRONMENT
- Operating Environment – 0° to 40° C
- Noise Level (Less than) – 40dB
