Vertiv™ Edge is a family of highly reliable, efficient, manageable and flexible line interactive sinewave UPSs, with models ranging from 500VA to 3000VA in 1U, 2U, 3U, mini-tower, rack tower and rack-mount form factors (depending on model). With a high 0.9 power factor, controllable outlets and extended runtime options, Vertiv Edge is a cost-effective choice for protecting server and networking equipment in distributed and Edge IT applications.

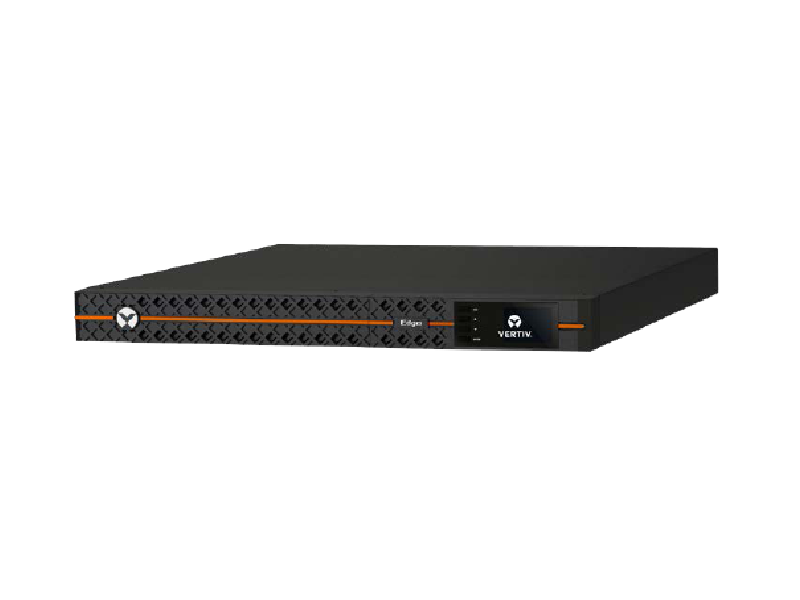

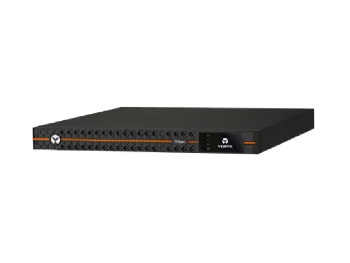

EDGE-500IRM1U
- PRODUCT OVERVIEW
- Technical Specifications – 1U Rack Models (*) Note: operation at >40 °C power derating applies.
- Model Number EDGE-500IRM1U EDGE-1000IRM1U EDGE-1500IRM1U
- Rating (VA/W) 500VA/450W 1000VA/900W 1500VA/1350W
- Dimensions, mm Unit (W x D x H) 438 x380 x44
- Shipping (W x D x H) 550 x 620 x 200 570 x 700 x 200 570 x 780 x 200
- Weight, kg Unit 11 17 23 Shipping 17 23 31 Input AC Parameters Nominal Voltage Setting 230V Voltage Range
- Without Battery Operation (230V default) 166 to 278 Frequency Range (Hz) 55 to 65
- Input Power Connector IEC60320 C14 Surge Protection (J) 624 Output AC Parameters Output Receptacles 3 + 3 IEC320 C13 Output Receptacles – Controllable Yes – 1 group Output Voltage 200/208/220/230/240
- Waveform (Battery Operation) Pure sine wave Transfer Time 4 to 6 ms Typical Output (AC Mode)
- Overload 106% – 125% @ 60 s; 126% – 150% @ 50 s; 151% – 200% @ 2 s Efficiency (full load, line mode, typ) 96% 97% 97%
- Battery Type: Valve-regulated, non-spillable, lead acid Quantity & Voltage & Capacity 2 x 6V x 9Ahr 4 x 6V x 9Ahr 6 x 6V x 9Ahr
- Recharge Time (internal batteries, typical) 3 hr @ 90%
- Environmental Operating Temperature (°C) * 0 to 40*
- Storage Temperature (°C) -25 °C to +55 °C without battery inside
- Relative Humidity (Operation) 20% to 90%
- Operating Altitude (m) 3000 Audible Noise (line mode) <40dB normal mode, <70% load; <45dB AVR mode, >70% load”
- Form Factor Rack (1U) Agency Compliance CE, CB Report Safety EN/IEC 62040-1 Transportation ISTA 2A
- Warranty 3 years
